Ruggedized potentiostat with battery & Bluetooth

  • Portable: battery, Bluetooth and rugged housing
  • Available with connection module for sensor cable or SPE
  • Potential range ±3 V
  • Max. current ±30 mA
  • Optional impedance analyzer: 10 μHz up to 200 kHz

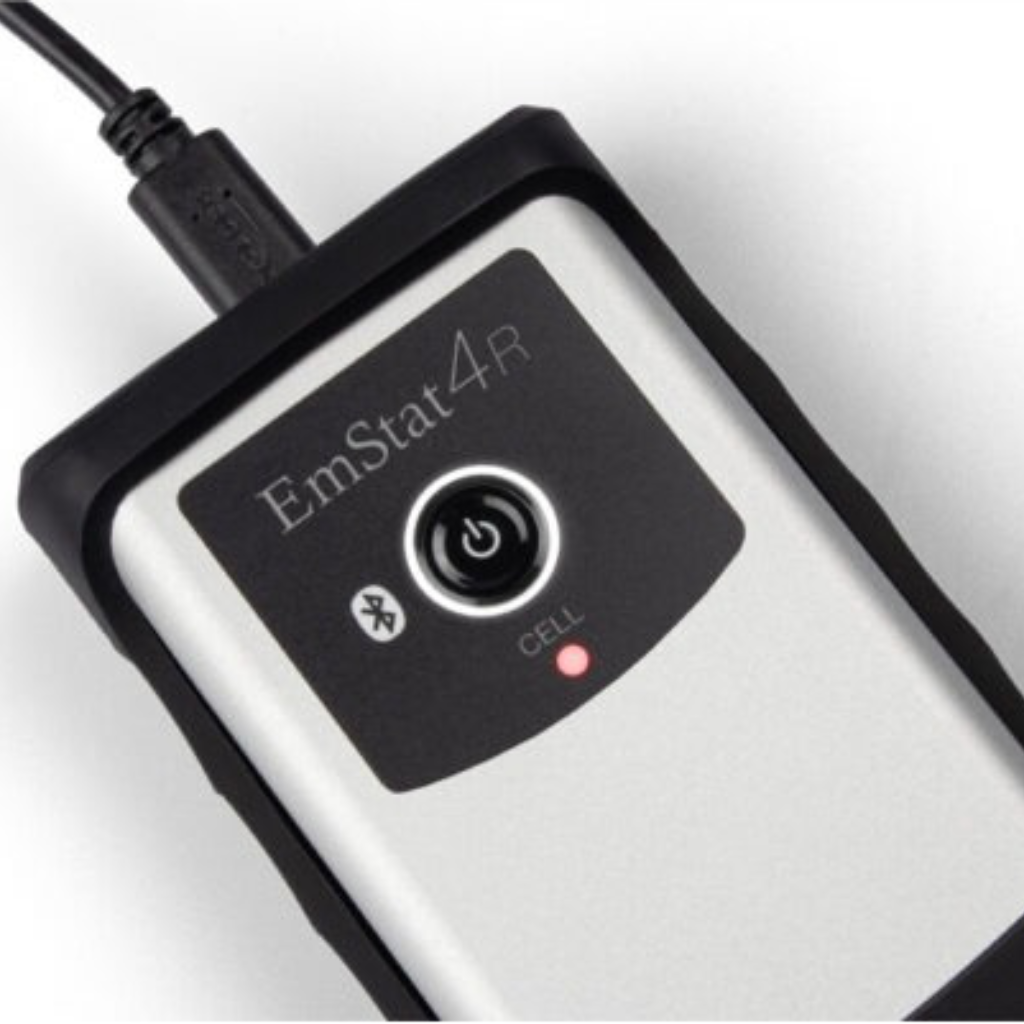

The EmStat4R delivers desktop performance in a rugged enclosure. The EmStat4R is a portable Battery or USB-powered Potentiostat, Galvanostat, and optional a Frequency Response Analyzer (FRA) for Electrochemical Impedance Spectroscopy (EIS). The EmStat4R is great for applications that require low currents, from 30 mA down to picoamps, such as sensor applications.


Two versions :

  • he EmStat4R is available with a cell cable or SPE connection module. Both versions can be configured with optional EIS/FRA with a maximum frequency of 200 kHz.


dc-potential range ±3 V
compliance voltage ±5 V
maximum current ±30 mA
max. data acquisition rate 1M samples /s
