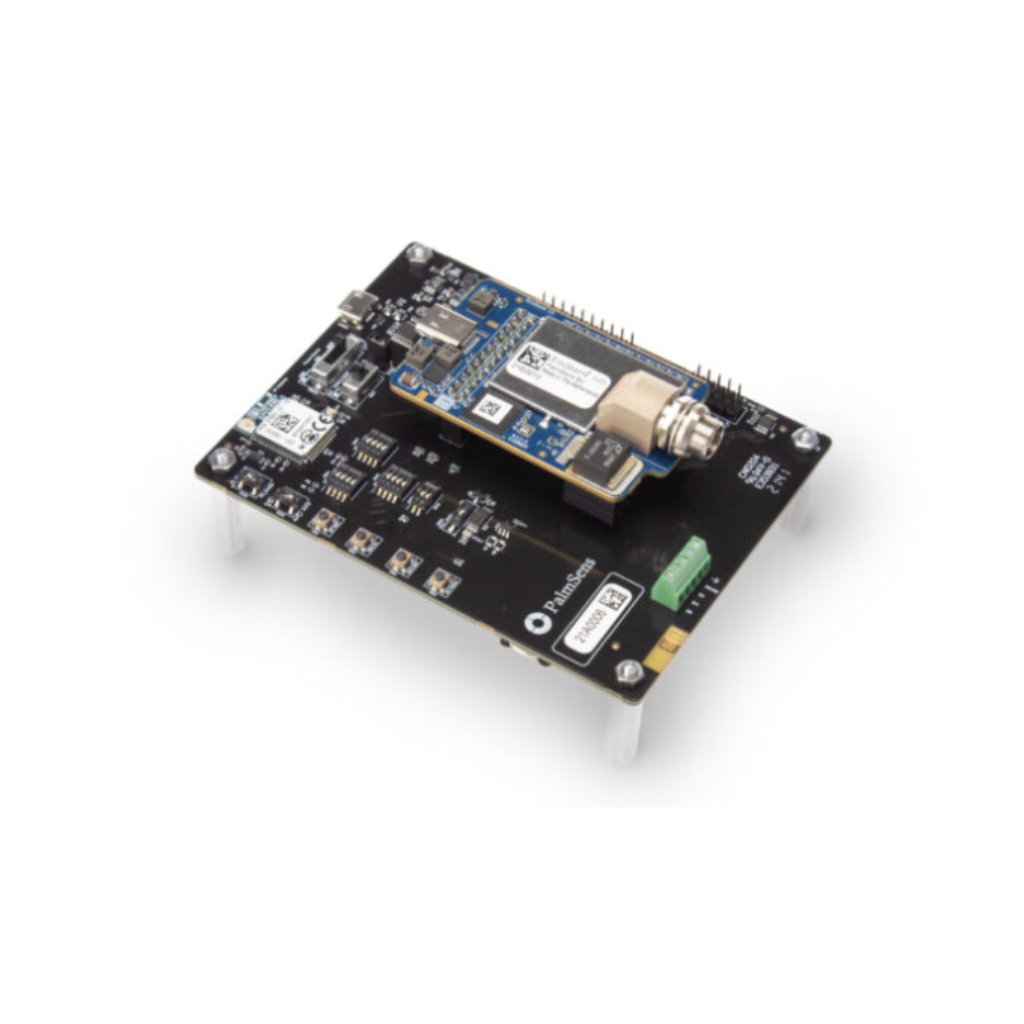

EmStat4M Development Kit

Research grade single-channel potentiostat kit

  • Enables rapid prototyping, no programming skills needed
  • Run measurements conveniently in PSTrace for Windows
  • Develop your own device based on this kit’s schematics
  • Many code examples for different languages and platforms

Description

The EmStat4M Development Kit is equipped with a research-grade potentiostat module, which delivers desktop performance. The EmStat4M is a potentiostat/galvanostat supporting Electrochemical Impedance Spectroscopy (EIS). The EmStat4M Development Kit can be used with PSTrace for Windows. You can write your own applications for the EmStat4M Development Kit using our .NET libraries for Windows and Android or using MethodSCRIPT™ and control it from any platform or operating system like an Arduino.

  • Low Range (LR): current range from 1 nA to 10 mA, max. 30 mA
  • High Range (HR): current ranges from 100 nA to 100 mA, max. 200 mA

Specification

Main specifications of EmStat4M Development Board
Dimensions 90 x 65 mm
Power USB-C or LiPo battery (battery not included)
Main connections – BT900 Bluetooth module Bluetooth v4.0 dual mode (BT and BLE)
– Micro-USB (on-board) or USB-C (via module)
Cell connections screw terminals (2.54 mm pitch) and LEMO (EPG.0B.305.HLN) on module
Arduino compatibility Footprint for Arduino MKR series
Real Time Clock On-board IC: S-35390A-T8T1G
With CR1225 3V coin cell battery compartment (battery not included)
Buttons 4 buttons for:
– EmStat4M Reset
– EmStat4M Download
– EmStat4M Wake
– Bluetooth Module reset
DIP switches DIP switches for:
– Power input select
– EmStat4M UART select
– Bluetooth module UART select
– EmStat4M I2C Master select
