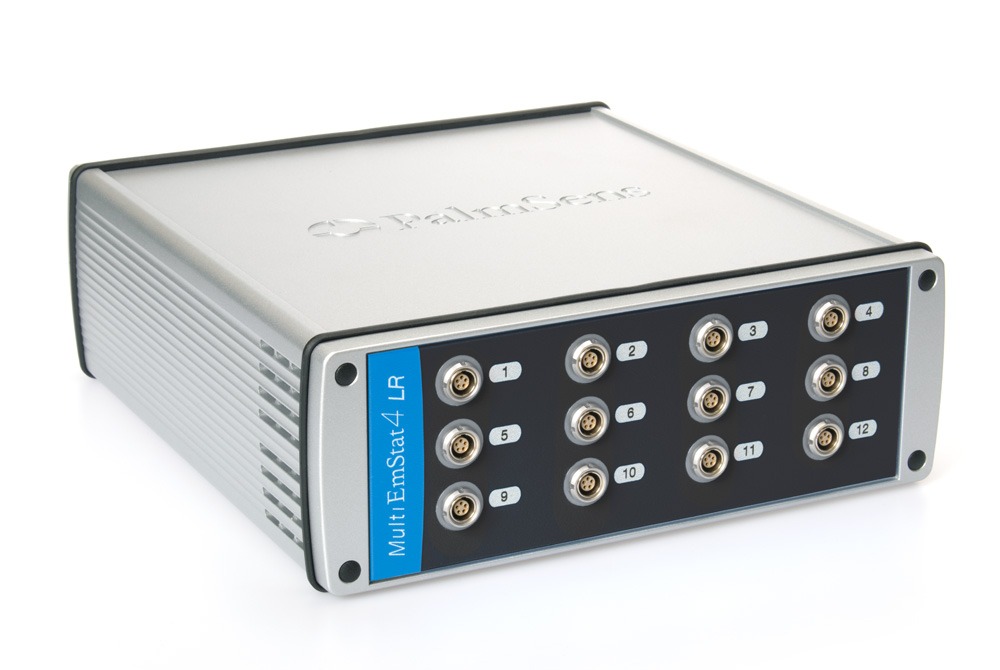

MultiEmStat4
Multi-channel Potentiostat / Galvanostat / Impedance Analyzer
- Available with 4, 8 or 12 channels
- FRA / EIS: 10 μHz up to 200 kHz
- Potential range: ±3 V (LR) or ±6 V (HR)
- Max. current: ±30 mA (LR) or ±200 mA (HR)
Description
No Compromises on Productivity and Performance
The MultiEmStat4 is a compact Potentiostat, Galvanostat, and optional Frequency Response Analyser (FRA) for Electrochemical Impedance Spectroscopy (EIS) with 4, 8 or 12 channels. The MultiEmStat4 comes in two versions; the Low Range version is great for applications that require a low current range down to 1 nA, whereas the High Range version is very suitable for applications that need a maximum current of 200 mA.
Specification
The MultiEmStat4M is available in two versions: the LR (Low Range) and HR (High Range) version.
| Main differences between the MultiEmStat4 Low and High Range | ||
|---|---|---|
| Potential range | ±3 V | ±6 V |
| Max. compliance voltage | ±5 V | ±8 V |
| Current ranges | 1 nA to 10 mA (8 ranges) | 100 nA to 100 mA (7 ranges) |
| Max. current | ±30 mA | ±200 mA |
| Electrode connections | WE, RE, CE and ground, 2 mm banana plugs |
WE, RE, CE, Sense, and ground, 2 mm banana plugs |
| Hardware options |
|
|
