EmStat Go
Portable Potentiostat for OEM
- Ideal for SPE applications
- Customizable sensor connector
- Optional battery and Bluetooth
- Rugged aluminum housing in rubber sleeve
- Customizable top foil for branding
Description

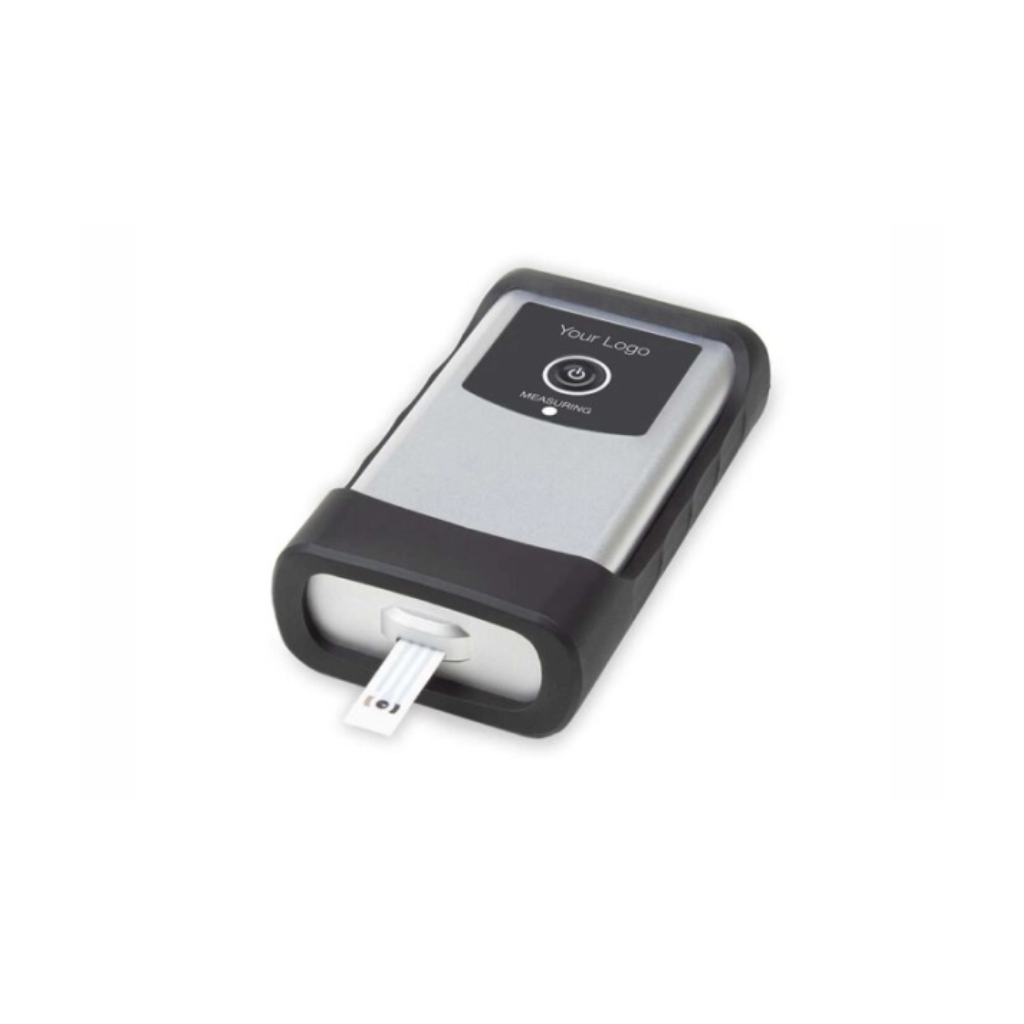

The EmStat Go is a battery powered*, handheld potentiostat which consists of a base unit and a customer-specific Sensor Extension module. The extension module can be equipped with one or more sensor connectors, temperature sensor, or other interface units you require for your sensor application. The instrument’s body is made from solid anodized aluminum with an optional rugged sleeve.
Specification
|
|

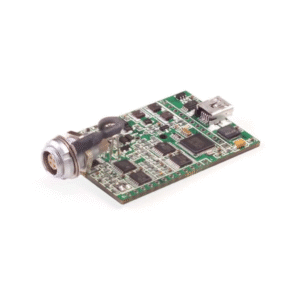

EmStat3 |
EmStat4M LR |

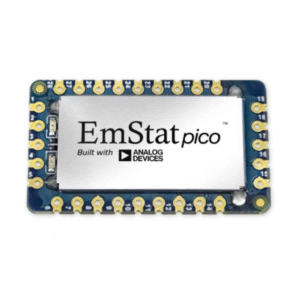

EmStat Pico |
| dc-potential range | ±3 V | ±3 V | -1.7 to +2 V |
| compliance voltage | ±5 V | ±5 V | -2.0 to +2.3 V |
| measured dc-potential resolution | 0.1 mV | 4.8 µV | 0.280 mV |
| current ranges | 1 nA to 10 mA | 1 nA to 10 mA | 100 nA to 5 mA |
| maximum current | ± 20 mA | ± 30 mA | ± 3 mA |
| EIS capable | NO | YES | YES |
| Supports MethodSCRIPT | NO | YES | YES |
